DRV-A501W Wide Quad HD Dash Cam Including Polarised Filter & 16GB SD-Card
Included Accessory: 16GB micro SD-card.
- Add a rear camera for dual recording (front & back): KCA-R100 - Full HD 1080p Recording Rear-View Window Camera
- CA-DR1030 Hardwire Kit Installation of this kit gives you a permanent power supply enabling the smart parking mode. Plus no more messy cables!
Wide Quad HD - 1.8 times as many pixels as Full HD
With its 3.7 megapixel CMOS sensor, the DRV-A501W captures Wide Quad HD video at 30fps. With 1.8 times as many pixels as Full HD, super-high resolution recording and replay is possible. By connecting the optional rear camera (KCA-R100) it is possible to record front and rear video footage simultaneously-both in Full HD quality.
Full Colour 3.0" LCD Display
Instantly view high quality videos and images you have captured on the DRV-A501W's 3.0" full colour LCD screen, without any loss of resolution.
Optional Extra CA-DR1030 Hardwire Kit Activates Smart Parking Mode
Installation of this kit gives you a permanent power supply enabling the smart parking mode. Plus no more messy cables!
Desktop Software and Smartphone Wireless Link App
With the desktop software, download files from the dash cam onto your PC/Mac then browse through recorded videos, edit the videos and share them with your insurance company, and on social media. You can also use the Smartphone Wireless Link App to change the menu settings of your dash cam dvr.
G-Sensor & GPS
Magnetic Quick Release

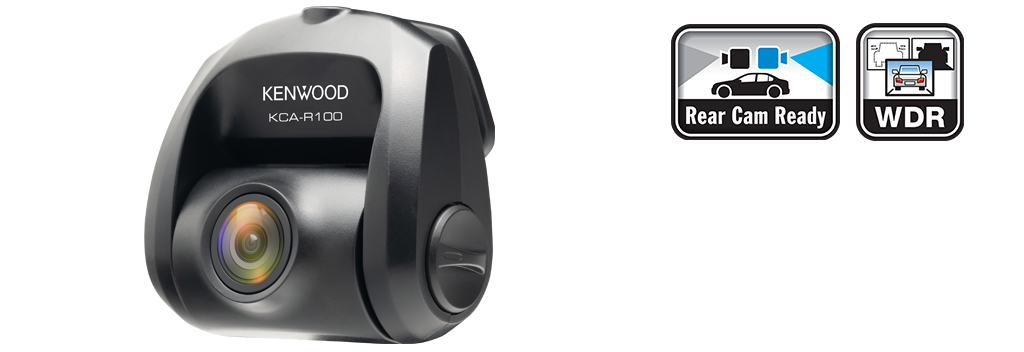

KCA-R100 - Full HD 1080p Recording Rear-View Window Dash Cam
The KCA-R100 rear-view window dash cam has an adjustable 180° vertical rotational lens and a 161° horizontal viewing angle. This flexibility provides a proper view from various angles of the rear windscreen.
What’s the best dash cam for you?
||▶ Click to see the differences between the DRV-A601W and DRV-A501W|
|Resolution - Image quality||Wide Quad HD 1440p|
|Recording Resolution - Playback quality||(2560 x 1440) @ 30 fps|
|Viewing Angle - Diagonal | Horizontal | Vertical||126° | 126° | 110°|
|Screen Size||3.0” LCD screen|
|HDR - (High Dynamic Range)||Yes|
|Smart Parking Mode||Yes - with optional accessory CA-DR1030|
|Polarised Filter - Reduces glare/reflections||Yes|
|Audio Playback:||Yes - audio on or off mode|
|Smartphone App Link & Desktop Software
|3-Axis G-Sensor Built-in - Collision or other physical impact||Yes|
|GPS - Allows a record of position and speed||Yes|
|Rear Camera Option||Yes - KCA-R100 Full HD 1440p|
|Micro SDXC/SDHC Card Capacity||8GB - 256GB, Class 10|
|Micro SD Card Recommended Type||Class 10 recommended, for best results use a recognised brand|
|Micro SD Card Recorded File Capacity - Based on Default Settings||8GB = 47 mins (1 min x 47 recordings)
16GB = 94 mins (1 min x 94 recordings) - Included with product
32GB = 141 mins (1 min x 141 recordings)
64GB = 376 mins (1 min x 376 recordings)
128GB = 752 mins (1 min x 752 recordings)
256GB = 1504 mins (1 min x 1504 recordings)
|Dimensions||106 x 50.5 x 40.5 mm|
|Dash Cam Weight - Unit only||3.6oz / 102g|
|- DRV-A501W dash cam||- 16GB micro SD card|
|- Polarised filter||- Manual|
|- Suction-cup mounting bracket||- Adhesive mounting bracket (2 adhesive pads)|
|- Cigar lighter car charger adapter (12~24VDC)||- Micro USB cable 110 cm|
|- Cable clips x 4|
Differences Between the DRV-A601W & DRV-A501W
|DRV-A601W dash cam||DRV-A501W dash cam|
|4K Ultra HD (UHD) Recording||Wide Quad HD (WQHD) Recording|
|Recording Resolution: 4K (3840 x 2160) Resolution (8.3M) (Max)||Recording Resolution: Wide Quad HD (2560 x 1440) Resolution (3.7M) (Max)|
|Optional Rear Camera: KCA-R200||Optional Rear Camera: KCA-R100|
|Lens Type: F1.8 Bright Lens with 130° (Diagonal) wide viewing angle||Lens Type: F1.6 Bright Lens with 126° (Diagonal) wide viewing angle|
|Picture Size: 3840 x 2160 Pixels||Picture Size: 2560 x 1440 Pixels|
|Diagonal Field of View: 130°||Diagonal Field of View: 126°|
|Horizontal Field of View: 129°||Horizontal Field of View: 126°|
|Vertical Field of View: 72°||Vertical Field of View: 110°|
|Recording Media: Micro SDXC/SDHC card High Endurance UHS Speed Class (U3)||Recording Media: Micro SDXC/SDHC Card Class 10|
|Link to: DRV-A601W|
