KCA-R200 Rear View Camera

(Compatible with front dash cam DRV-A601W) for dual recording (front & back)

rear window dash cam KCA-R200

FREE delivery on all orders*



Wide Quad HD Recording 2560 x 1440p - 3.7 Megapixel

The KCA-R200 captures Wide Quad HD video at 30fps (frames per second), making it possible to record and playback in greater detail, including number plate numbers and signs on the road.



*Please note connecting an optional rear view window camera will reduce the recording resolution of the DRV-A601W front dash cam.

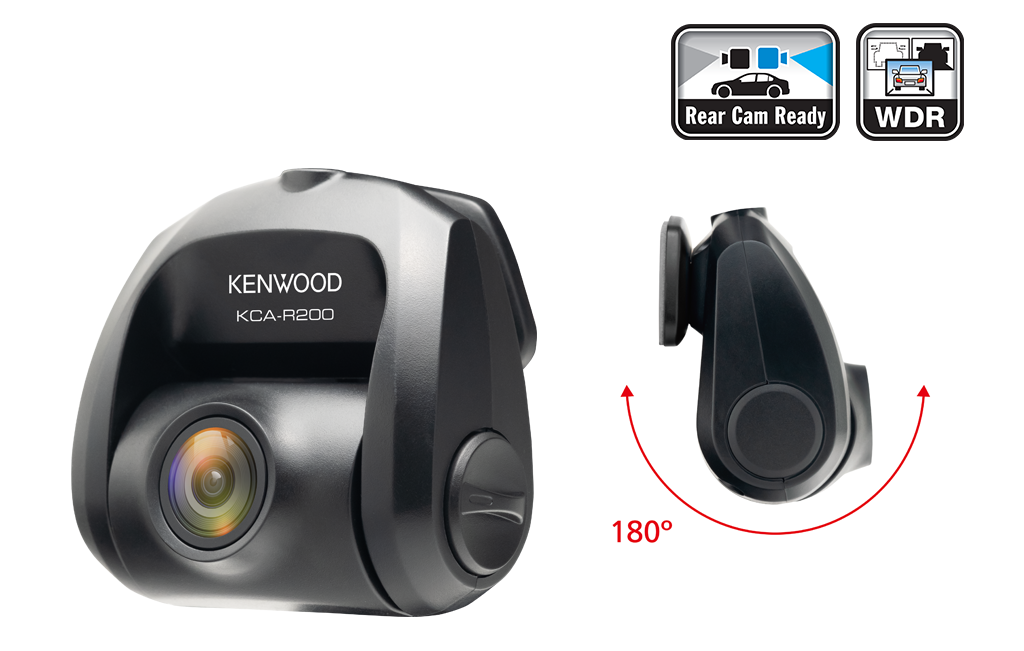

180° Rotational Lens

The 180° rotational lens gives you total flexibility and provides an optimum view from various angles of the rear window.


KCA-R200 180 degree angle view


161° Ultra-Wide View

Features a wide-viewing angle lens with a horizontal angle of +/-129º, vertical angle of +/-66º, and diagonal angle of 161º. The recording view at the rear of the vehicle expands in all directions to ensure nothing gets lost in the captured video footage.




Watch the video clip below to see the front and rear dash cam recordings


Key Features

Compatible with the DRV-A601W front dash cam
Wide Quad HD Recording Resolution (2560 x 1440p @ 30fps)
1/2.8 CMOS sensor
F2.0 Fixed focus lens
161° Diagonal field of view
High Dynamic Range (HDR) mode
180° Adjustable lens angle
Adhesive mount


Camera Features

Camera Type 1/2.8" colour CMOS sensor
Mounting system Fix mount base
Installation positions Normal / Up-side down
Horizontal Angle view +/- 129°
Vertical Angle View +/- 66°
Video signal format H.264 / MOV
Audio Format Linear PCM
Connection cable (DC+video) 8 m


General Specifications

Operating voltage 5V (5 ~ 5V Allowable)
Maximum Current Consumption 110A
Dimensions (WxHxD) 63 x 66 x 36mmn
Weight 334 g


What's in the Box

Mini USB connection cable 800 cm (8 meters)
Adhesive tape pad 2 pieces
