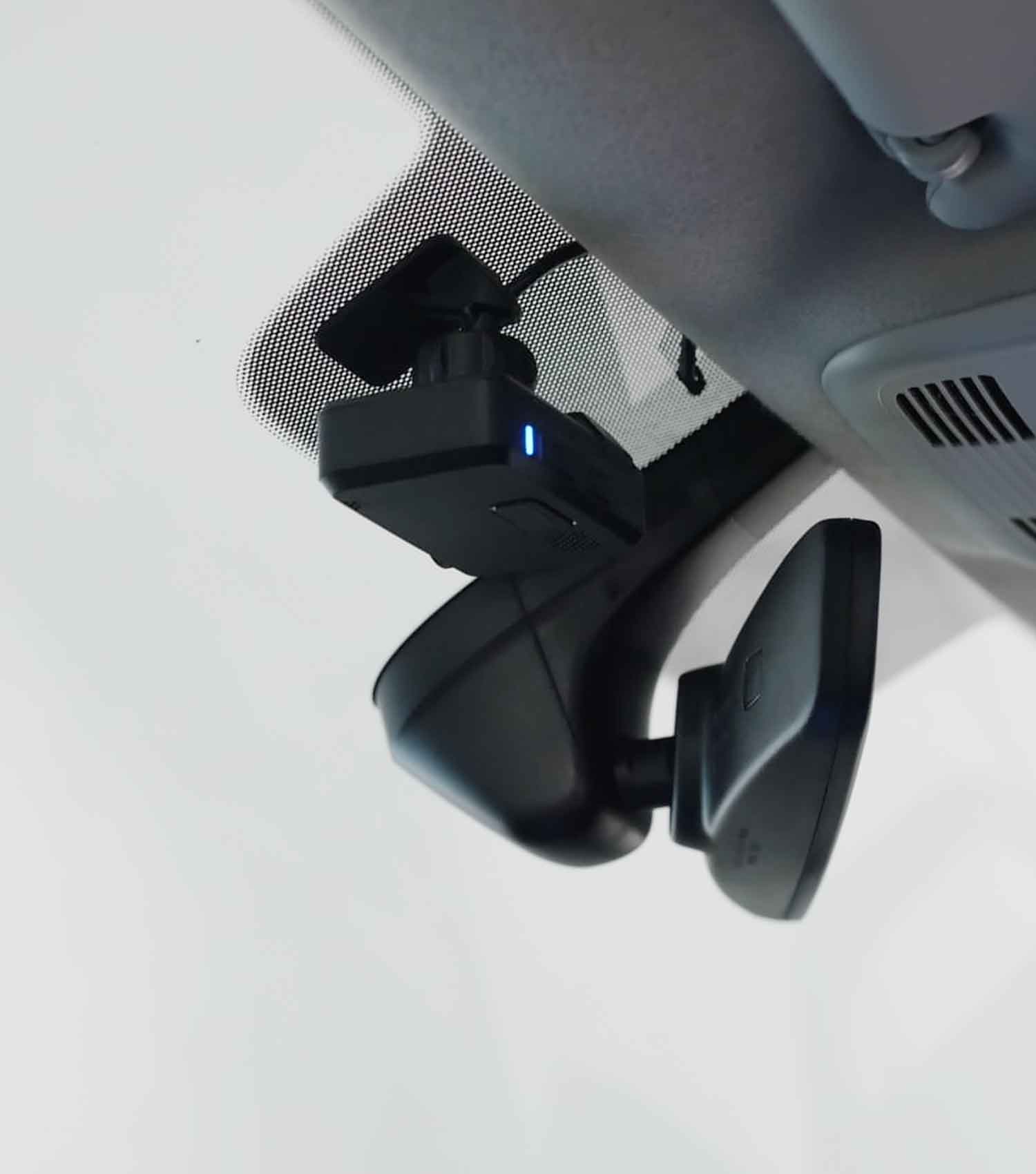

KENWOOD provides you with a wealth of additional features by linking your compatible KENWOOD multimedia system* with the ultra compact DRV-N520 dashcam. (Please see the list of compatible models before purchasing)

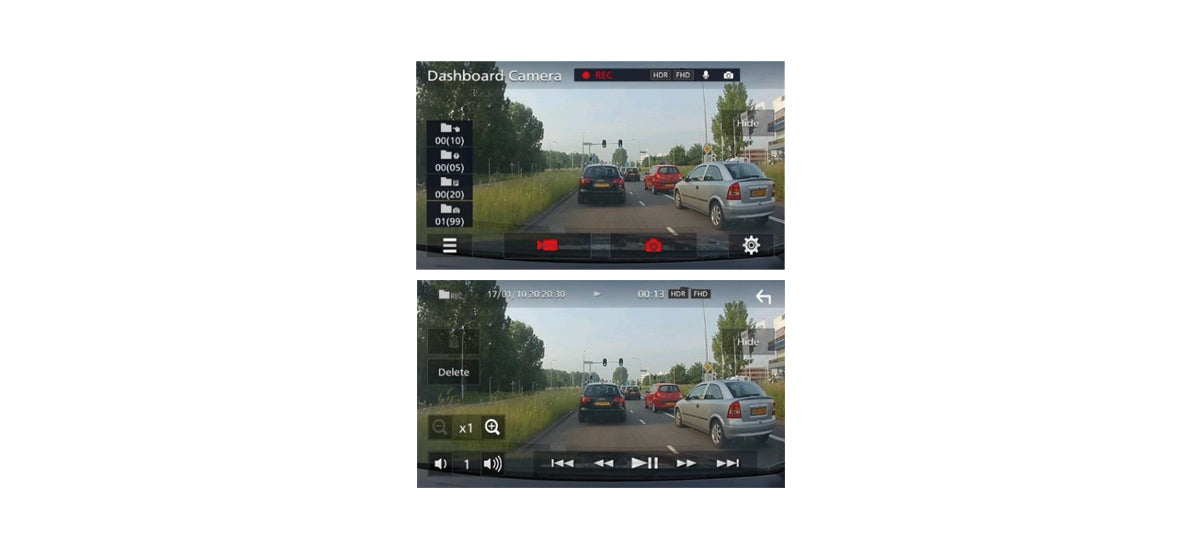

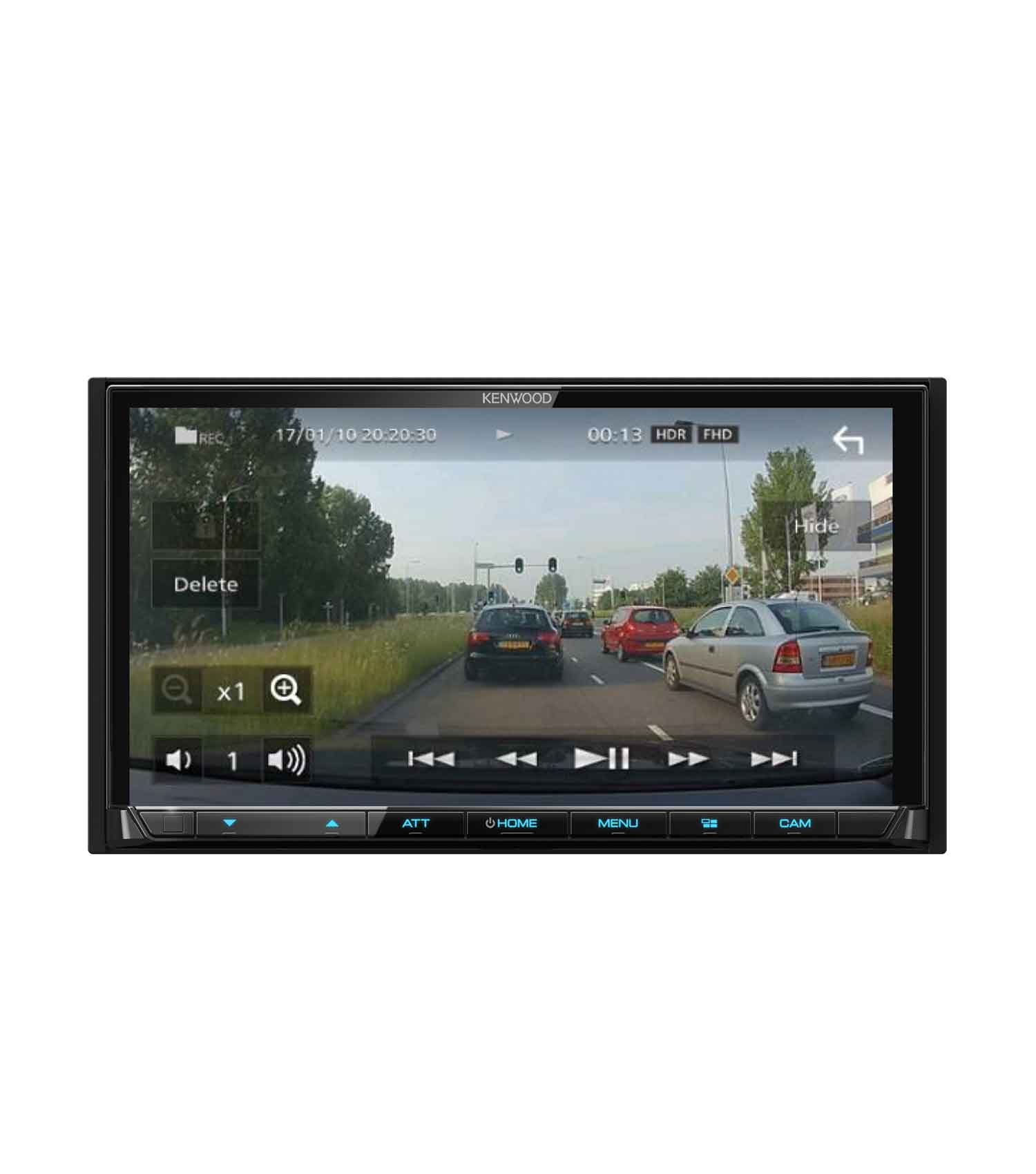

Recorded videos can be displayed on your KENWOOD multimedia/navigation system's large screen and operated from the system's touch panel.
The DRV-N520 dash cam comes equipped with the safety alert function, which can be activated or deactivated. Dangerous situations such as an unintentional lane departure or forward collision are detected, and a beep sound plus caution pop-up is displayed on the multimedia/navigation system.
- Dash Cam - Car Mount Bracket
- Wiring
- Dash Cam - PC/Mac software downloadable
- Multi-Language instruction manual included
- Instruction manual
- Reviews
- Questions
United KingdomDRV-N520 Integrated Dash Cam
Totally happy with this dashcam. it's small but powerful with some really useful features. I love the way it integrates with my Kenwood head unit. Brilliant!!
United KingdomDash Cam review DRV-N520
Bought this as it integrates with my Kenwood DAB8180 head unit. Picture quality excellent and easy to use with detailed instructions. My only gripe, hence only 4 stars, is that you only get 12 months warranty whereas with other Kenwood dash cams you get the option of 3 years extra for just £9!!!!!. Why no extended warranty option Kenwood?
United KingdomGreat Addition
This dash-cam is a great addition to the DMX8020DABS. Even an amateur like me - following the instructions - found it easy to install. The dash-cam has some sophisticated driving support features such as forward collision warning and lane departure warning which in all honesty I haven’t used. However, it serves my purpose as a good quality dash-cam capable of recording any motoring incidents during my travels. On the downside the dash-cam is only usable with specific Kenwood head sets and is more expensive than many others on the market but that said I am very happy with my purchase.
United KingdomDRV-N520 Integrated Dash Cam
Works great with my DNX415RVS in-dash receiver. Easy to set up, great picture and in dash monitor/review functions. Make sure you have 32GB SD card (max) if wanting high def pictures! Windows / Mac software available to review images/location data. SD card files contain images and GPS data. Wish there was Bluetooth file transfer so you could leave SD card in-situ... Nice working product.
DRV-N520 FEATURES
Compatible KENWOOD Multimedia Systems*
DDX9717BTS, DMX7017DABS, DMX7018DABS, DMX7520DABS, DMX8019DABS, DMX8020DABS, DMX9720XDS
Compatible KENWOOD Navigation Systems*
DNR4190DABS, DNX451RVS, DNX518VDABS, DNX5180DABS, DNX5180BTS, DNX5190DABS, DNX7170DABS, DNX7190DABS, DNX8180DABS, DNX9180DABS, DNX9190DABS
Image Sensor
1/3 Colour CMOS Sensor
Viewing Angle (Diagonal / Horizontal / Vertical)
D: 128° / H: 117° / V: 63°
Lens (F-number)
Lens Type Bright F2.0 Wide View Lens
Display
Links to Compatible KENWOOD Multimedia/Navigation Systems and Displays and Controlled via the Systems Screen
Rear View Camera Addition
No
Recording Resolution
2304 x 1296p 3M Pixels
Frame Rate
27fps
HDR
Built-in
HD
Super HD Recording
Angle
Wide Record Angle
3-Axis G-sensor
Built-in
GPS
No
Recording Mode
Event Recording Mode / Continuous Recording / Parking Recording
Recording Preservation Timing
Full Time / Event / Manual / Parking
Recording Time (10 / 30 / 60 Seconds)
Collision Detection / Before Collision Detection / After Collision Detection
Parking Mode Recording Time
10 / 20 / 30 Seconds
Safe Driving Features
Built-in
Forward Collision Warning (FCW)
Alerts you if an object in your path has suddenly stopped or slowed down (Can be switched off if not required)
Lane Departure Warning (LDW)
Is a mechanism designed to warn the drive when the vehicle begins to move out of its lane (Can be switched off if not required)
Departure Delay Warning (DDW)
The unit makes a warning beep by detecting the Start-up of preceding vehicle (Can be switched off if not required)
Voice Recording (Mic & Speaker)
Yes (ON / OFF)
Recording Media
microSDHC Card 8 GB ~ 32 GB, Class 6 or Higher
File Format
MOV
Video / Audio / Picture Format
H.264 / Linear PCM / JPEG
Backup Battery
Built-in Super Capacitor
Desktop Software Windows / MAC
KENWOOD Driver Reviewer
Power
Hard Wire Type
Mounting Bracket
Adhesive
Dimensions / Weight
79 x 22 x 48 mm / 772 g (Dash cam only)
Warranty
1-Year Parts & Labour
