Key Features

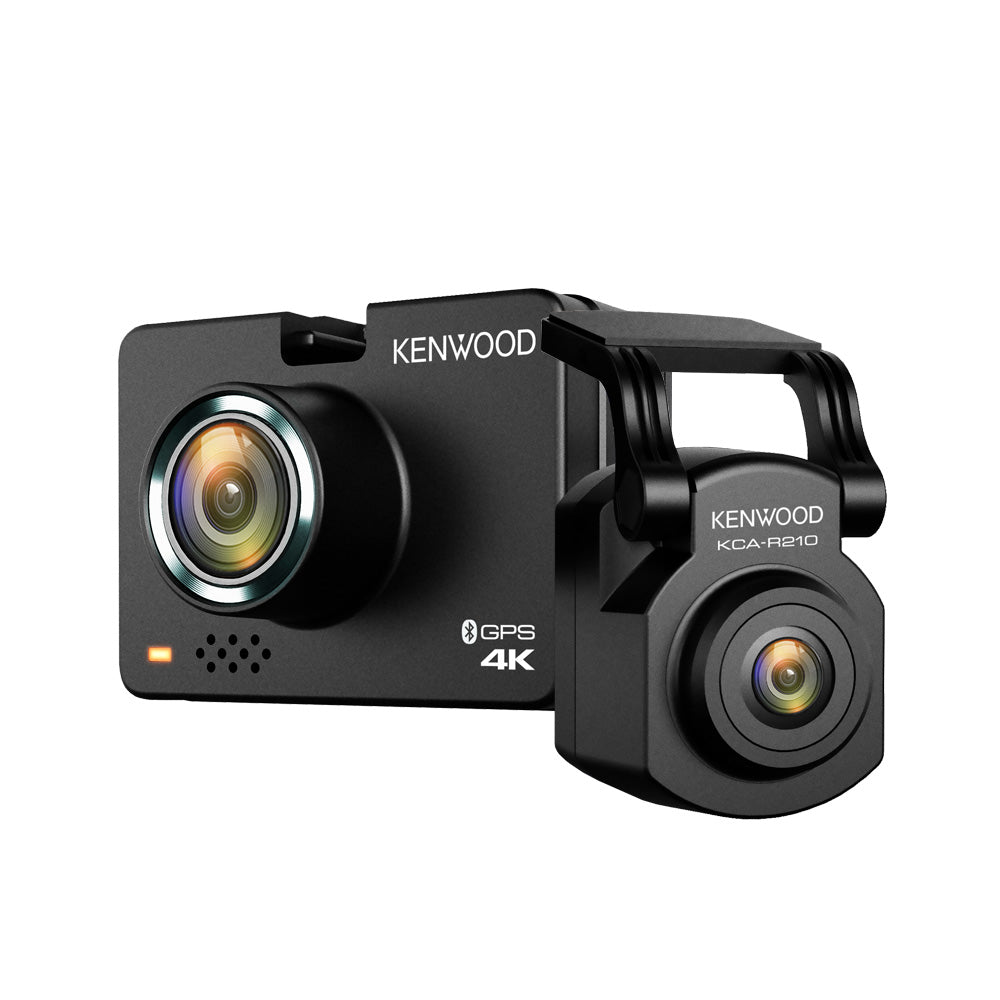

Front & Rear Dash Cam Specifications

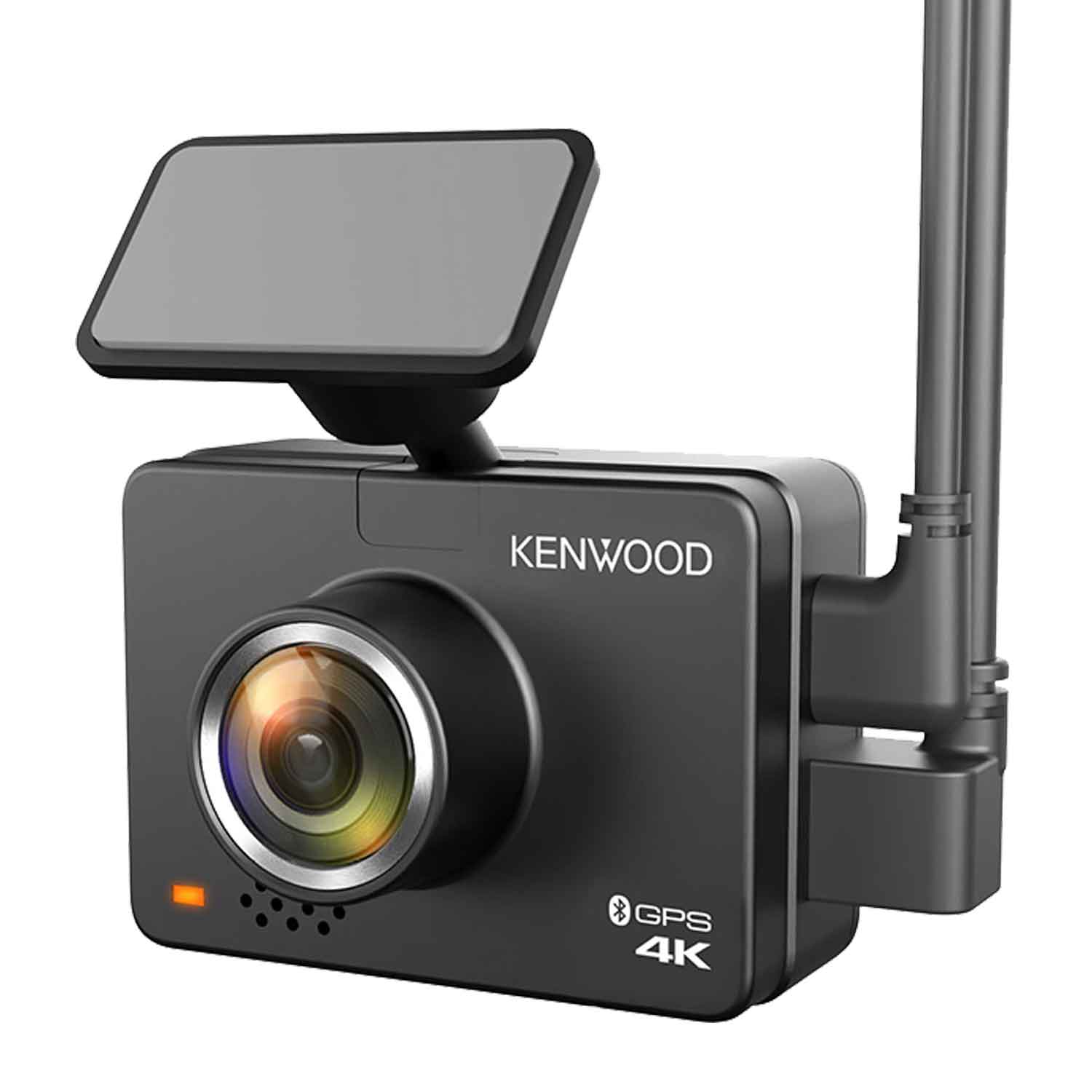

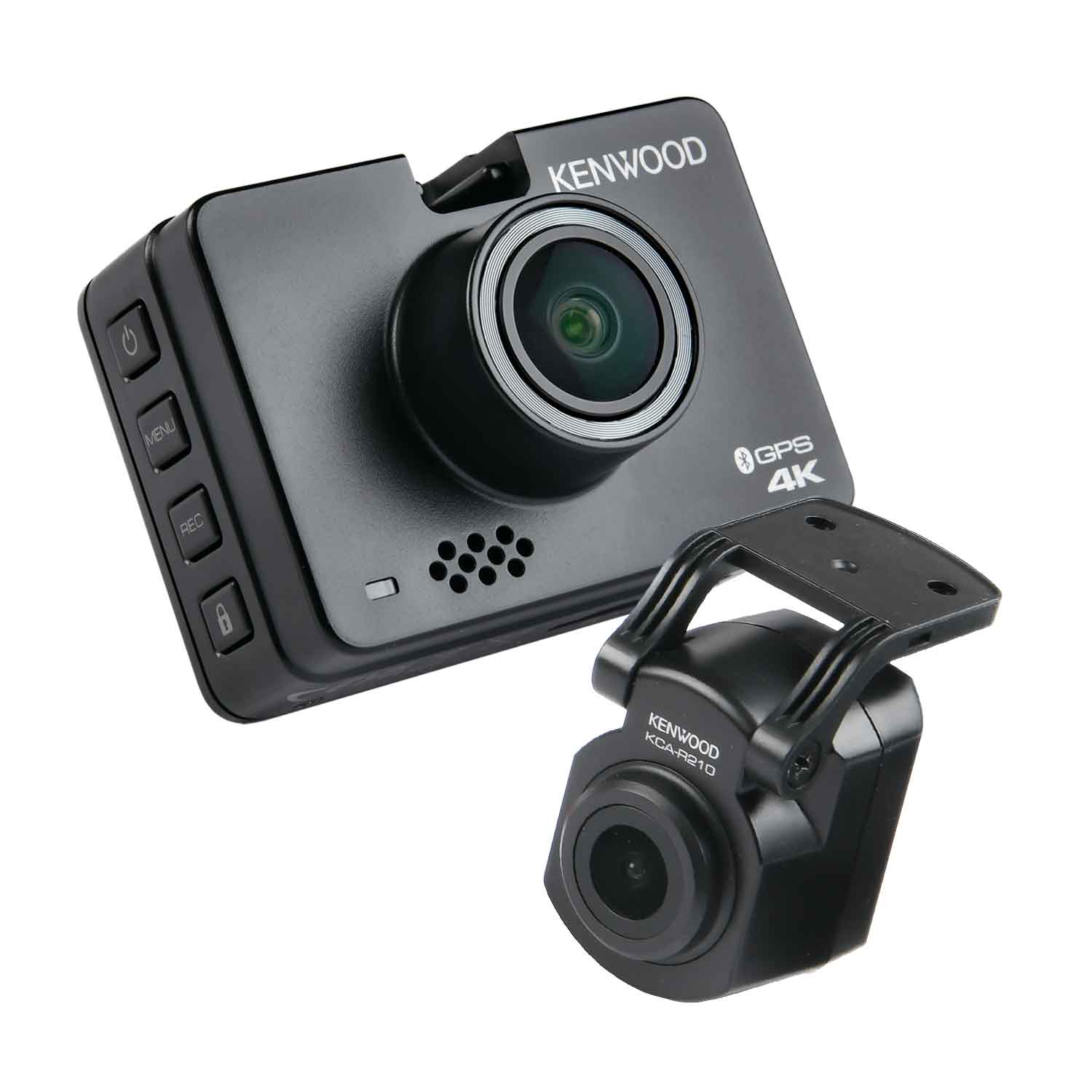

DRV-A610W Front 4K Ultra-HD Dash Cam Specifications
Image Sensor:
1/2.8" CMOS
Number of Pixels:
8.29M Pixels (3840 x 2160)
Lens Type:
F1.8 Fixed focus lens
Diagonal Field of View:
136°
LCD Screen:
2.0" Full Colour TFT (Thin Film Transistor)
Recording Resolution:
4K Ultra-HD / 8.29M Pixels (3840 x 2160px)
Front & Rear 2 Camera Recording:
Yes with the KCA-R210 2K HD waterproof IP67 rated rear-view dash camera. Installation outside or inside the vehicle
2 Channel Recording Resolution:
4K Front & 2K Rear Simultaneous Recording
Frame Rate:
30 fps (Frames Per Second)
Photo Format & Size:
JPEG & 2560 x 1440 Pixels
Recording Format:
H.265 / MP4
Video Clip Length:
1 Minute
Audio File Fomat:
AAC (Advanced Audio Coding)
GPS Reciever:
Yes (Records Speed, Time & Location)
G-Sensor:
High / Medium (Default) / Low / Off
HDR Record Enhancement:
Yes
Smart Parking Mode & Recording:
With optional CA-DR1130 hardwire kit | Recording: Vibration Detection, Motion Detection or Time-Lapse
Smartphone App:
Yes, via Bluetooth/WiFi connectivity (Available for iPhones & Android smartphones)
Recording Media & Maximum Size Recording Media:
Micro SDHC/SDHC card UHS Speed Class (U3) | 8GB up to 256 GB
Menu Language:
English (Default) /GE/FR/DU/IT/ES/PT/PL/CZ/RO
Operation Voltage:
5 VDC
Power Supply Type & Voltage:
USB Car Charger + 4m power cable (Or use optional hardwire kit CA-DR1130) | 12 - 24 VDC

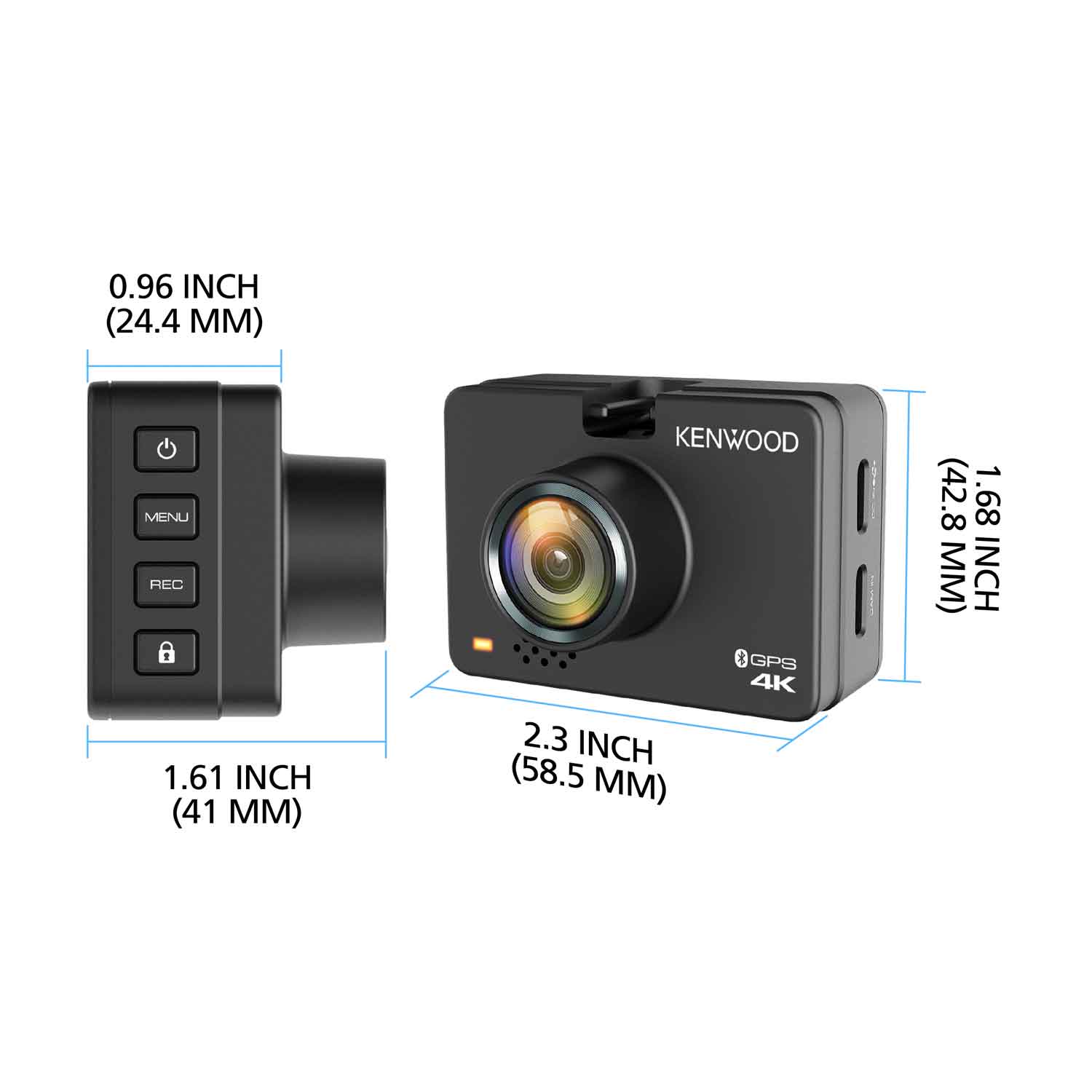

Dimensions & Weight:
W: 58.5 x H: 42.8 x D: 24.4 mm | 65 Grams (Camera Only)
PC/Mac Film Application:
KENWOOD Video Player

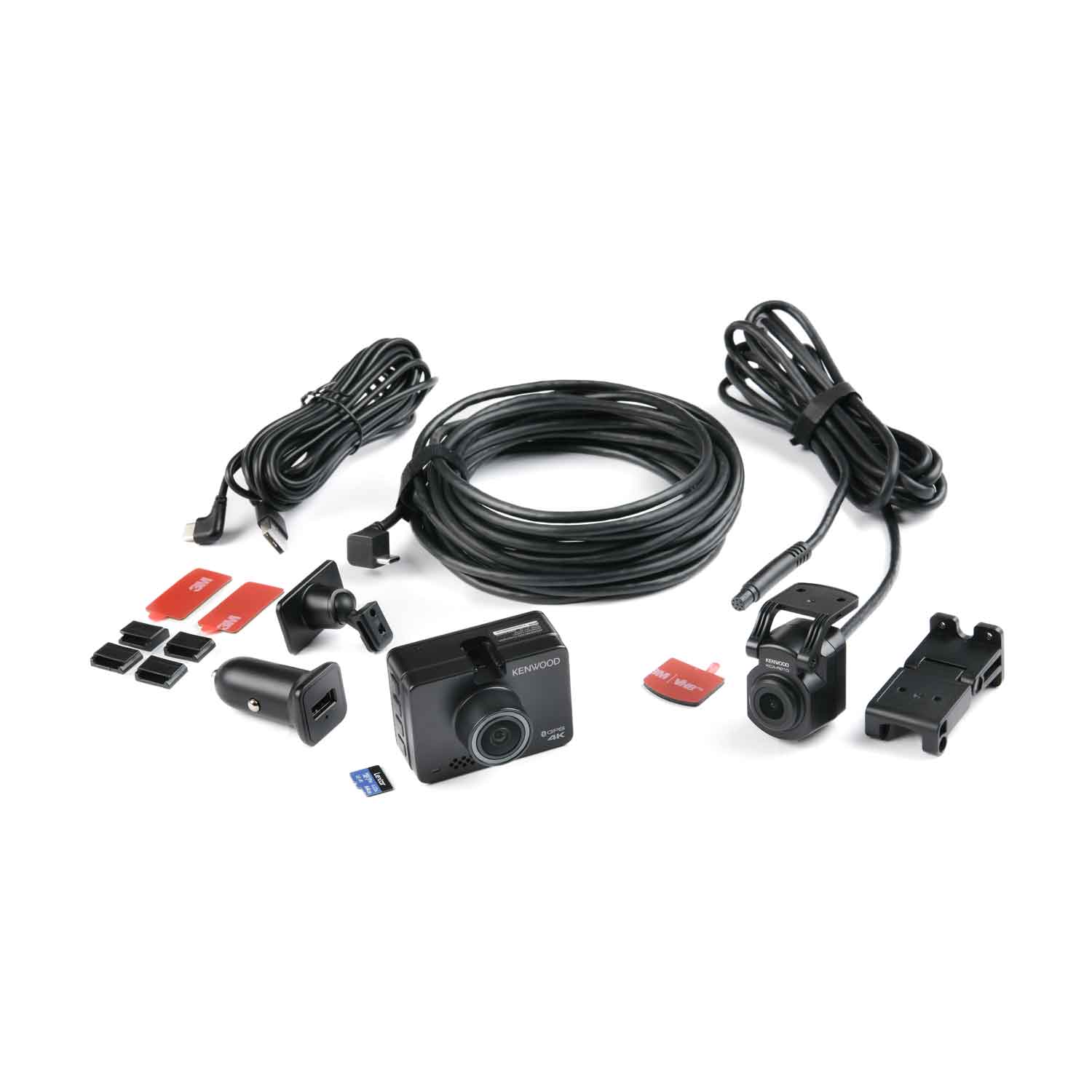

Accessories Included:
DC cable: 4.0 meter USB-A type to USB-C type power cable. Car Charger Adapter: Car Cigarette Lighter to USB-A. Cable Clip: 4 pieces. Adhesive car mount bracket: Included x 1. Spare Adhesive pad: 2 pieces.
-

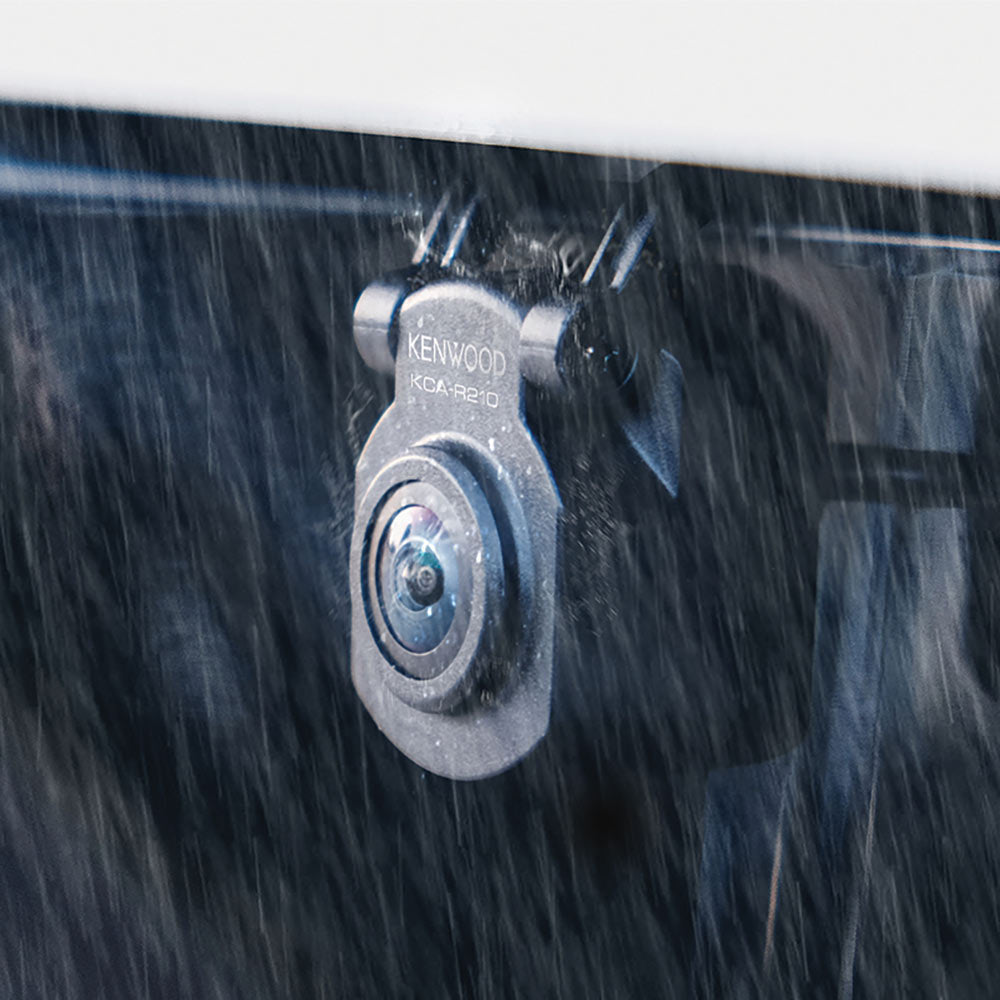

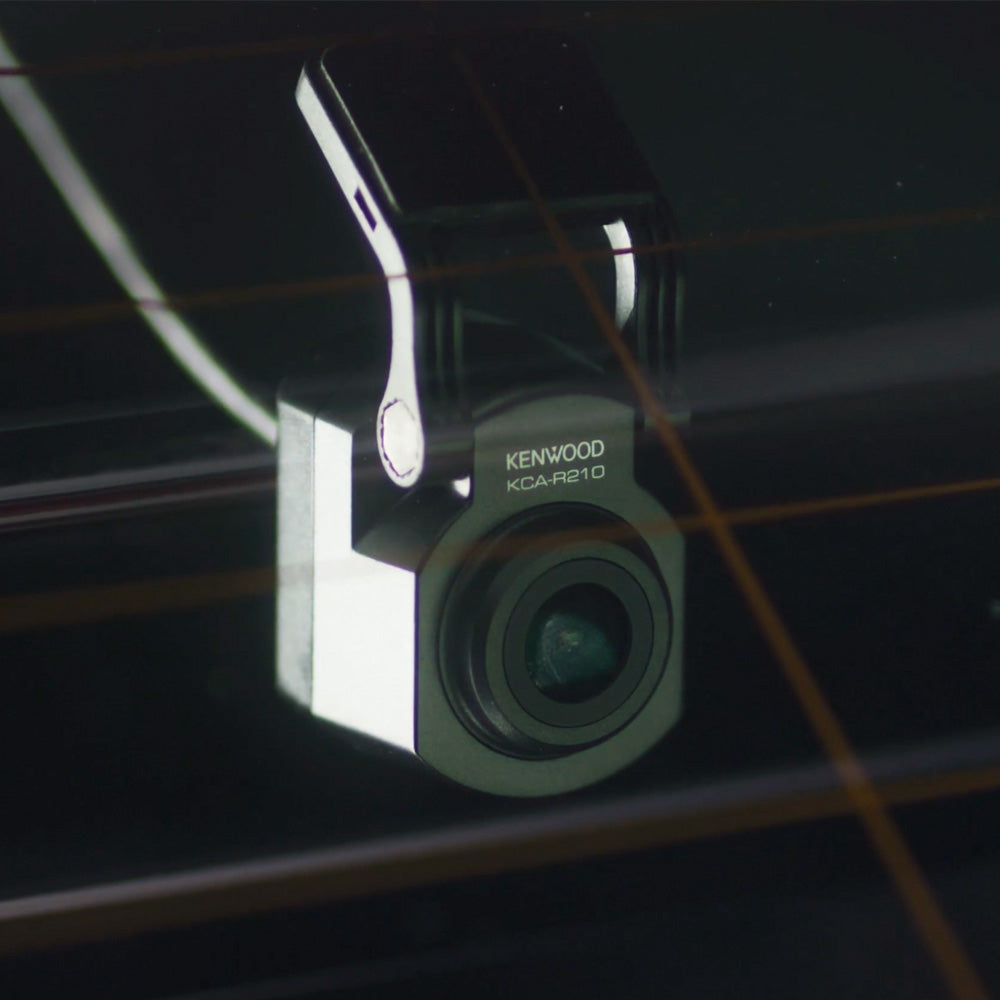

KCA-R210 Waterproof IP67 2K Wide Quad-Full HD Rear-View Dash Camera Specifications
IPX Rating:
IP67 Waterproof & Dustproof
Image Sensor:
1/3.0 inch colour CMOS sensor
Number of Pixels:
2K Wide Quad-HD (3.7M Pixels)
Recording Resolution:
2560 x 1440 pixels
Recording & Video Signal Format:
H.264 (MP4)
HDR (High Dynamic Range):
Yes
Lens Type:
F2.0 Fixed Focus
Field of View (Diagonal):
123.6°
Frame Rate:
30 fps (Frames Per Second)
Mounting system:
Adhesive Tape / Screws
Maximum Current Consumption:
0.3A
Dimensions (WxHxD):
W: 50 x H: 27 x D: 32 mm
Accessories:
KCA-R210 Rear-View Camera with 2.5m cable, Mounting bracket (170° up/down angle adjustment), Double-joint Bracket, Connection cable 550 cm, Screws (Parker-type) Ø 2.5 x 10mm, 4 pieces, Adhesive tape pads x 2
Whats in the Box (Inc Cable Lengths)
Optional Extras
Warranty & Customer Support
DPD Shipping









Drive with Confidence

Unmatched Clarity on the Road: Your 4K Ultra-HD Dash Cam Awaits

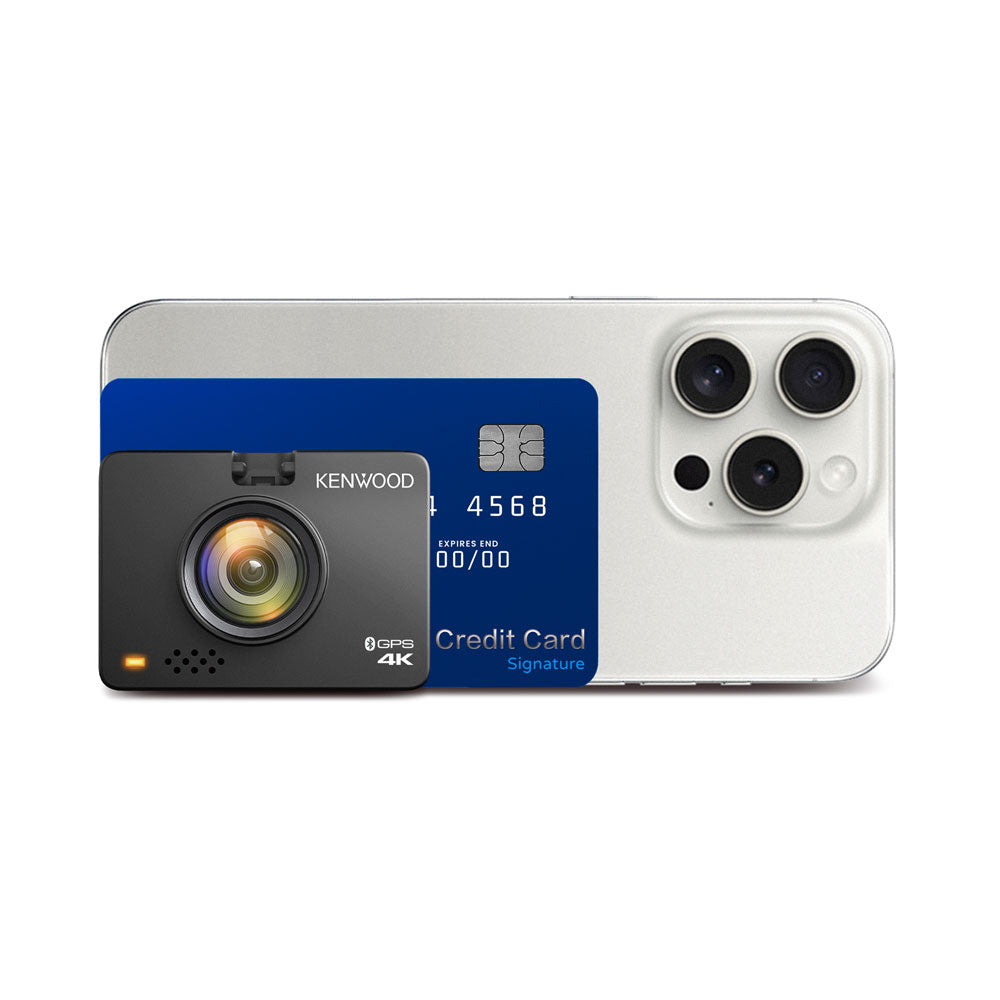

Compact Powerhouse: The Dash Cam Smaller Than Your Credit Card!

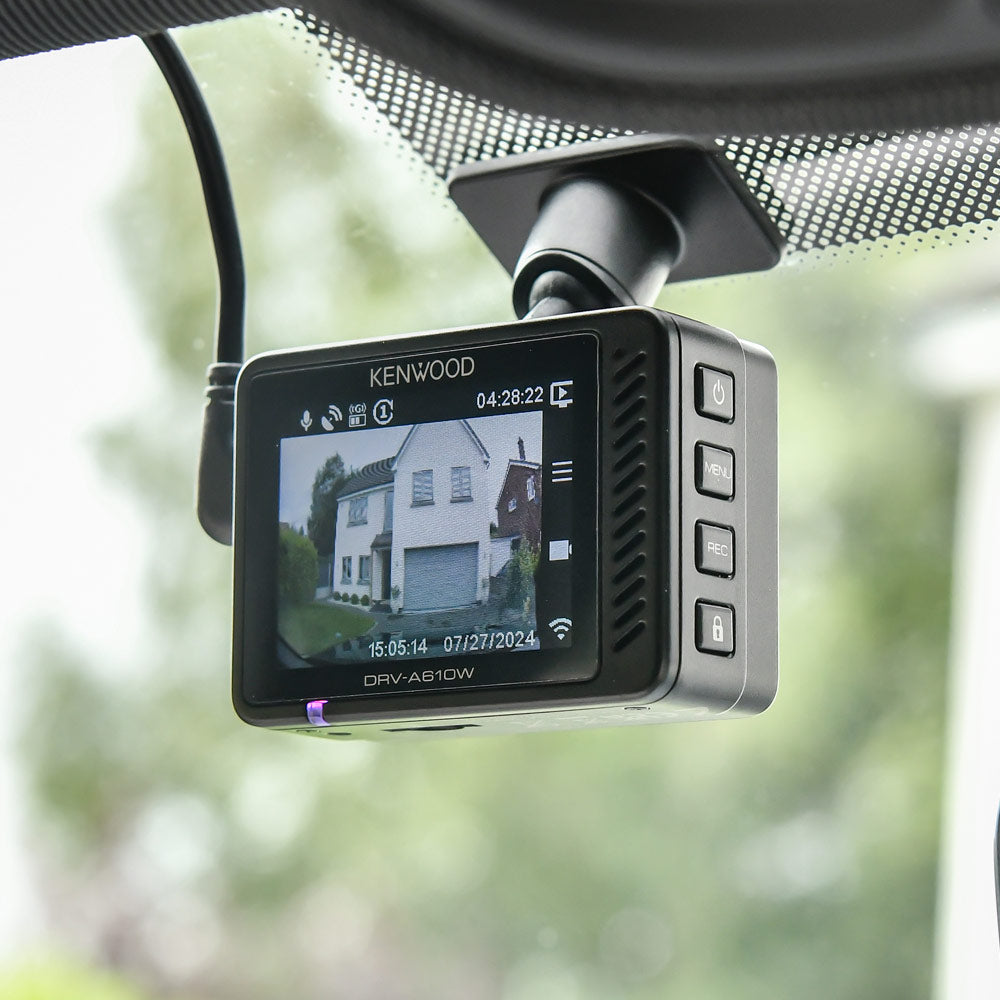

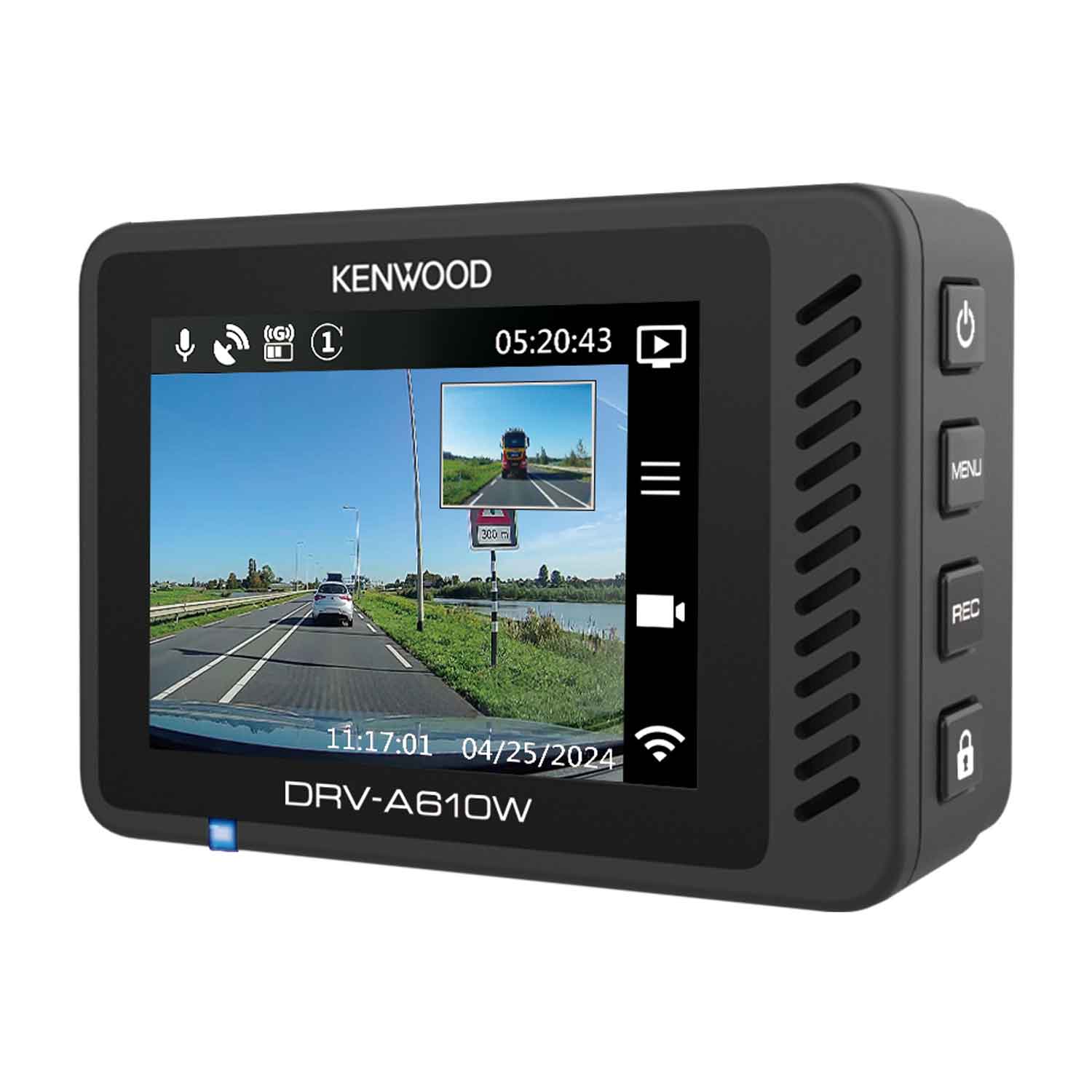

Ultimate Convenience at Your Fingertips: The DRV-A610W Dash Cam's 2.0” Full-Colour TFT Display!

Unleash Unmatched Clarity with Our F1.8 Lens Dash Cam!

Unmatched Clarity with WDR & HDR Technology!

Stay Informed and Protected with Our Advanced GPS Receiver and 3-Axis G-Sensor

Revolutionise Your View: With 170° Rotational Lens

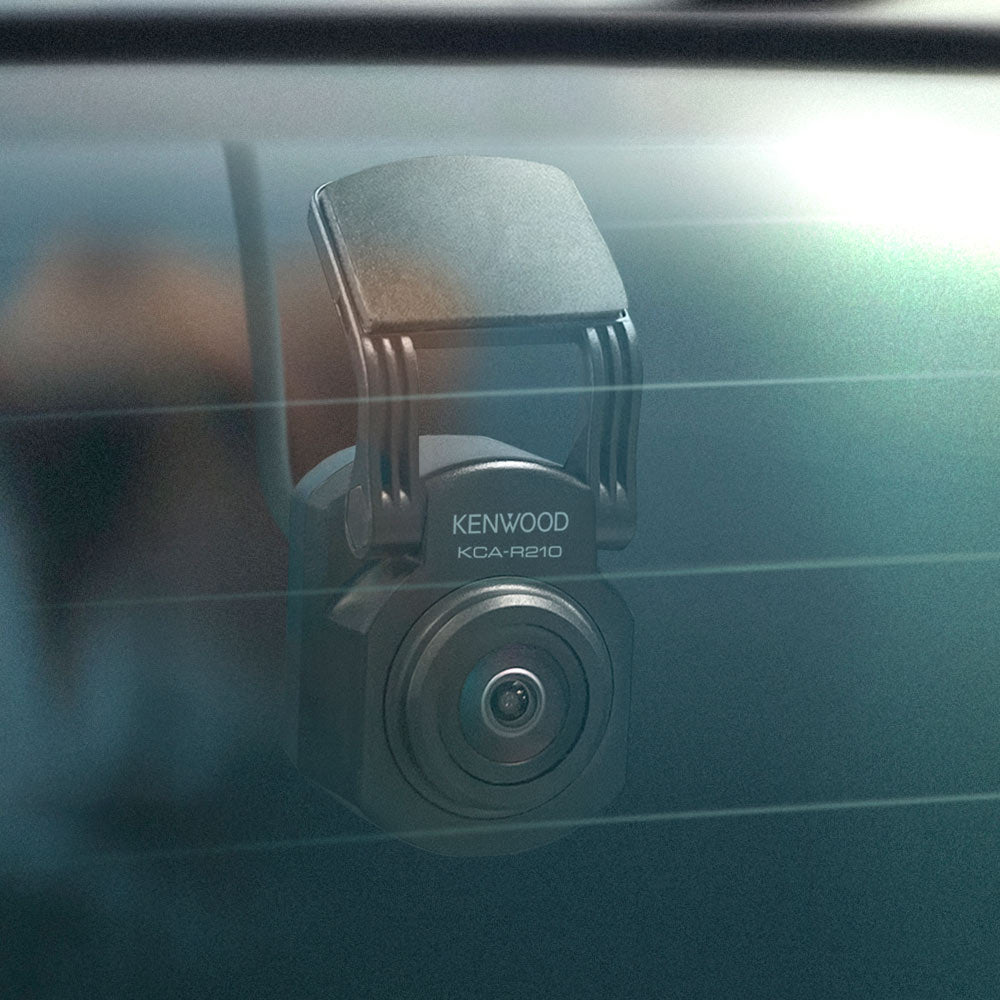

IP67 Rated Rear-View Camera: Perfect for Vans Without Rear Windows
